Add device
Create a device, associate a template, and bind a communication module on the [Add Device] page, and then you can view the screen monitoring of the device in the device dashboard.
There are three steps to add a device: 1. Enter basic information, 2. Select a product template, 3. Bind the communication module.

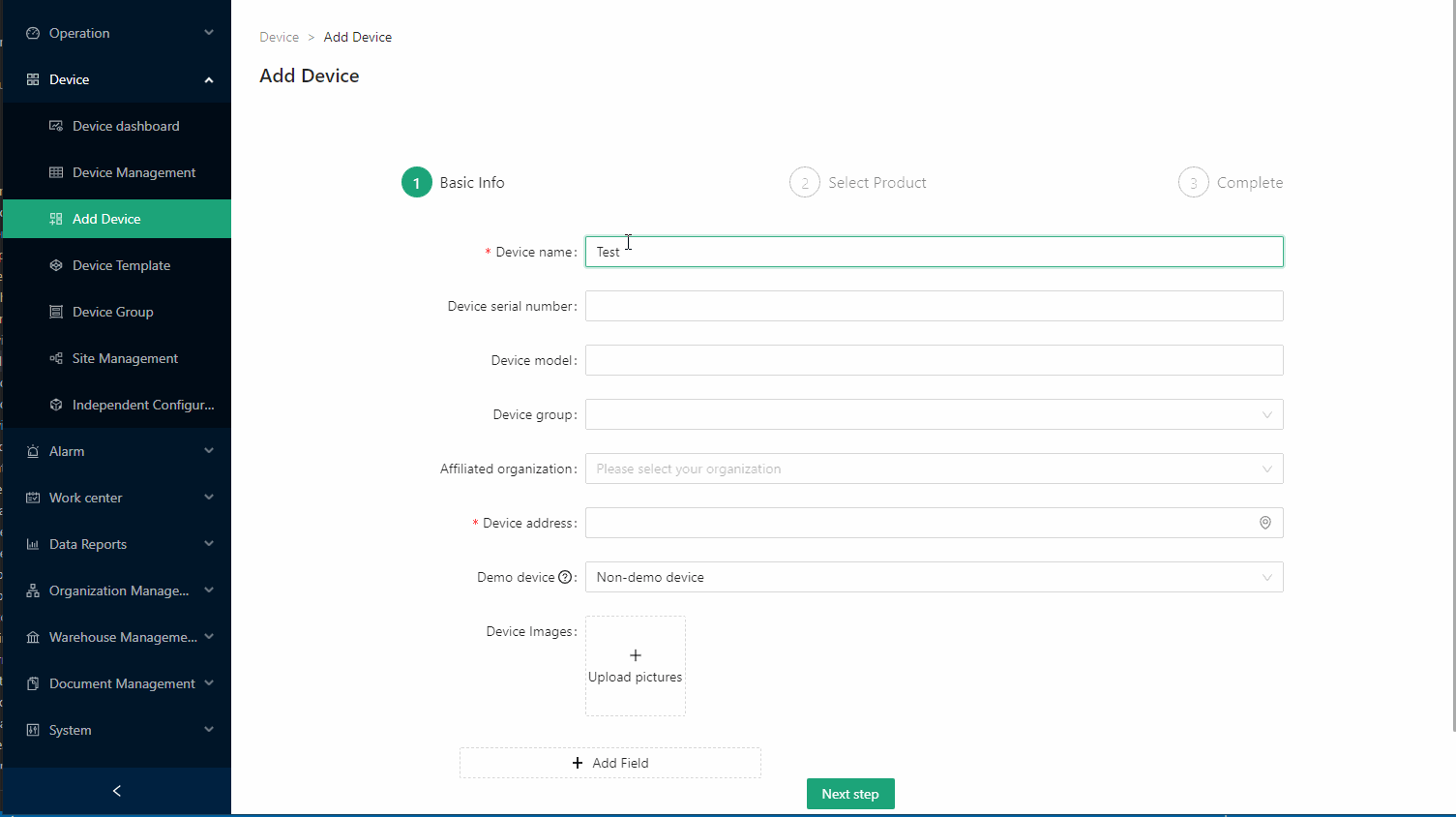

Enter Basic Information#
Field explanation
| Field | Meaning | Required fields |
|---|---|---|
| Device name | Device name to be added | Yes |
| Devise serial number | Derial number of the device to be added | No |
| Device model | Device model to be added | No |
| Device grouping | The group that the device belongs to, the group data can be added in [Device Group]; If the field is empty, the device will be displayed in the [default group] | No |
| Organization | Drop-down selection, the customer or organization to which the device belongs; If this field is blank, the default is the organization of the currently logged in user | No |
| Device address | Pop-up window selection, the geographic location of the device | Yes |
| Demonstration device | The default value is a non-demo device | No |
| Device image | Add a picture to the device, currently only supports uploading one picture | No |
| Add field | Custom field information | No |
After entering the basic information of the device, press [Next] to enter the product template selection
Choose Product Template#
After entering the basic information, click Next to enter the product template selection.
- Create a template
If you haven't created a product template yet, you can select [Create Template], enter [template name], select the supported agreement, and click [Submit] to skip to the next step and skip to the [Finish] step.
Click [Next, configure slave and variable] to enter the edit [device template], after editing the template, return to the device details to bind the communication module.
Click [Bind Communication Device] to bind the communication module. After completion, you can go to [Device Template] to set the template in detail.
- Existing template
If the product template already exists, you can select [Existing Template]. After selecting the template, click [Submit] to jump to the [Finish] step to bind the communication module.
Bind Communication Equipment#
Click the [Binding Communication Module] button in the [Finish] step, and a binding dialog box will pop up. Enter the serial number and password on the communication module label, and set the collection interval. Press Submit to complete the addition of the device.
